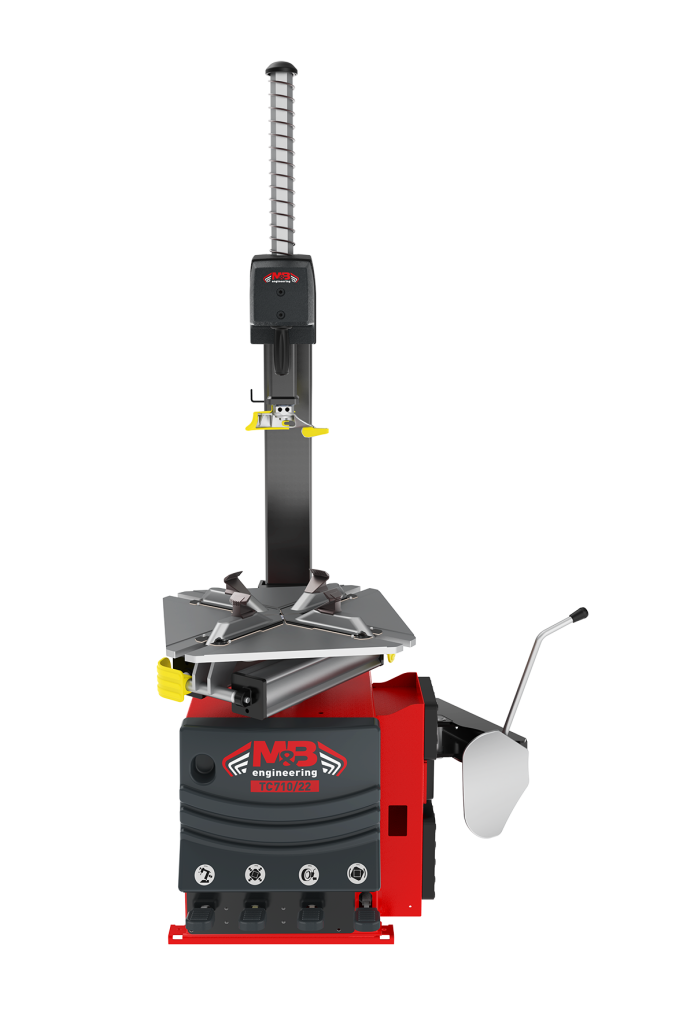

TC710/22

41 mm hexagonal vertical arm with device to minimize tolerances and 50×50 mm horizontal arm to reduce flexures in case of Run-flat tyres. Simultaneous vertical and horizontal arm locking system, vertical arm with spring return. Pneumatic rear tilting post granting the maximum rigidity. Square turntable with locking capacity up to 25”. It is equipped with a system with opposing jaws and with two cylinders of Ø 80 mm, guarantees an optimal clamping force on all types of rims. Professional tyre inflating gun with manometer. For a tyre pressure up to max 10 bar. Bead breaker with ergonomic arm to operate on wheels of 12” in width. Removable pedal unit for easy maintenance. Four pedals aligned in the front.

STANDARD CONFIGURATION

TECHNICAL DATA
